ADVANCED BAMBOO COMPOSITE CLADDING
The VistaClad lightweight bamboo composite cladding system is revolutionising how cladding works with an innovative clip strip which locks boards into place using reliable dual spring technology. VistaClad is available in a range of colours and finishes, with trim and accessories, as a complete cladding system, designed for ease of installation. Backed by an industry-leading warranty, this low-maintenance, weather-resistant cladding is a smart, cost-efficient investment in your project and a sustainable investment in our planet.
System Features
VistaClad cladding boards in Infinity co-extruded capped bamboo composite offer exceptional durability. The hardy bamboo PE (polyethylene) composite core is wrapped in a robustly engineered polymer cap for a resilient composite. Infinity offers a low-maintenance, eco-friendly alternative to conventional cladding in a selection of natural finishes. Enjoy its resistance features, such as protection against scratches, fading, moisture, insects, and weather, all backed by a 25-year warranty.
CUTTING-EDGE, SUSTAINABLE CLADDING

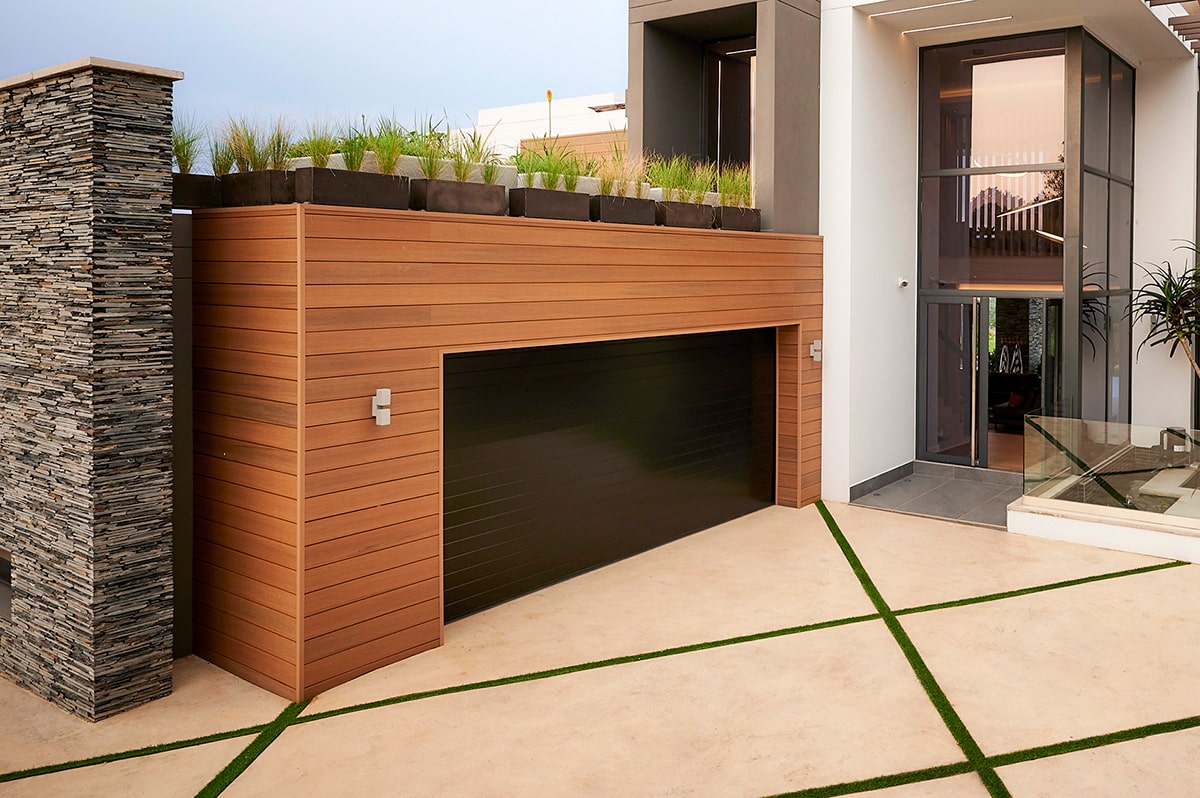

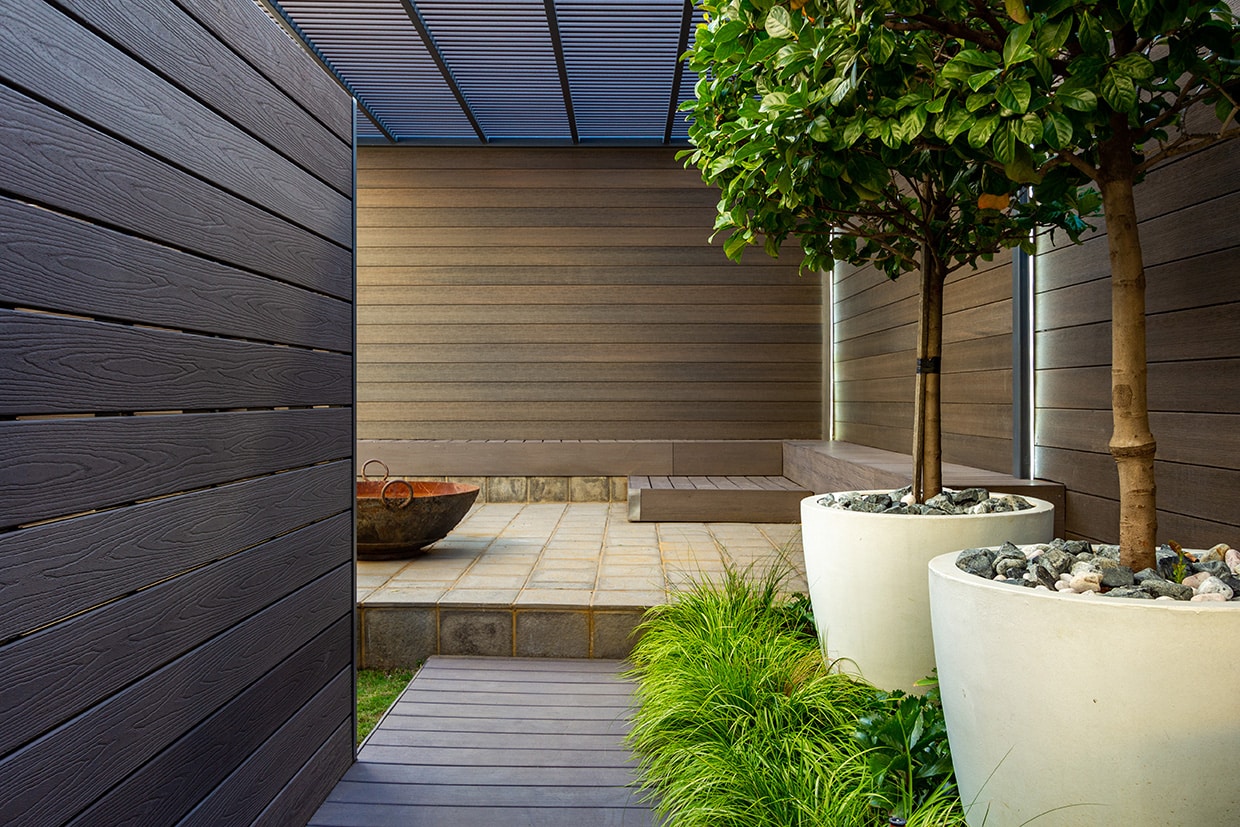

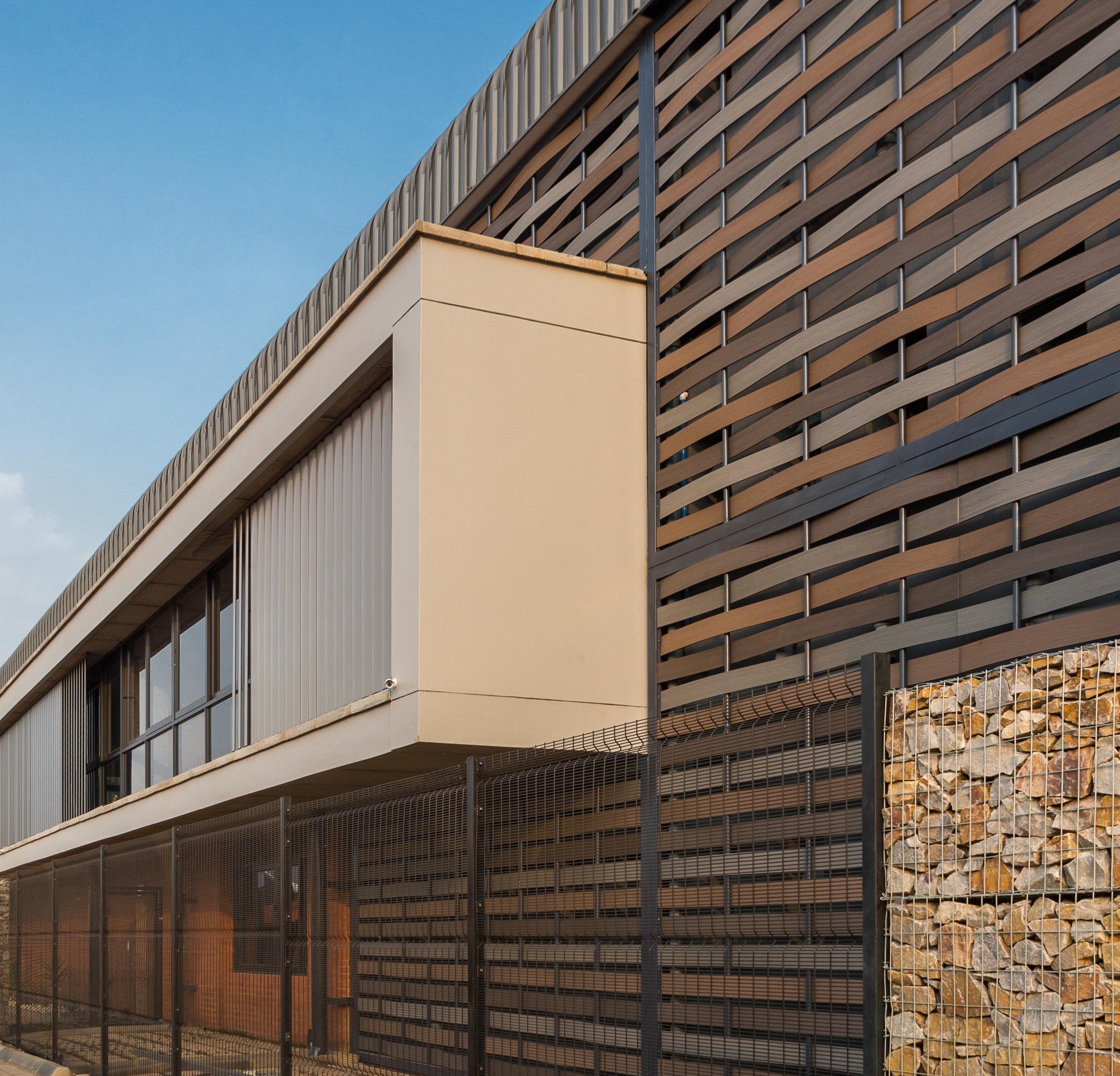

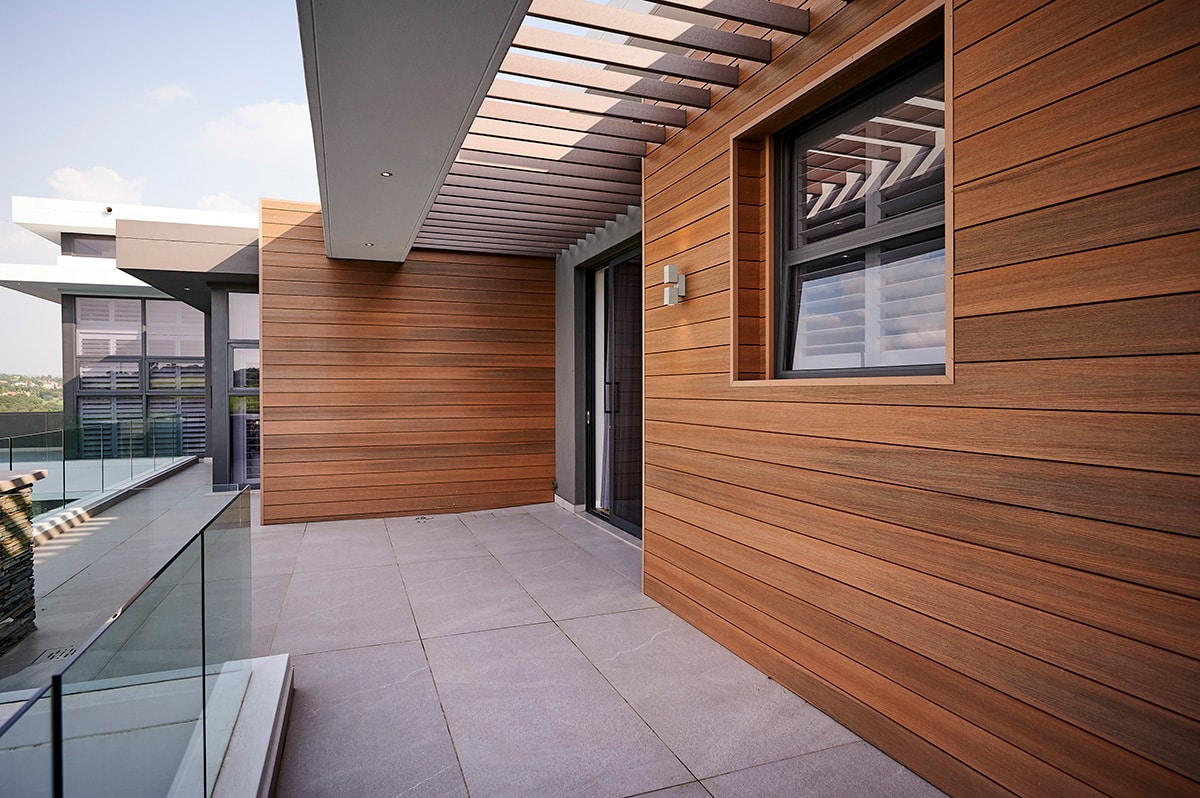

VistaClad bamboo composite cladding breathes vibrancy into your home or office space and enhances your walls with the attractive look of natural hardwoods. Let routine maintenance and premature replacement be things of the past as you look to the future with one of the most cutting-edge cladding systems available, complete with complementary trim for a neat and tidy finish.
TAKE HOME THE BENEFITS
CLIP LOCK DESIGN
COMPLETE CLADDING SOLUTION
LIGHTWEIGHT
VENTILATED & INSULATED
LOW-MAINTENANCE
DECAY RESISTANT
COST-EFFECTIVE SYSTEM
ECO-FRIENDLY
CLIP LOCK DESIGN
COMPLETE CLADDING SOLUTION
LIGHTWEIGHT
VENTILATED & INSULATED
LOW-MAINTENANCE
DECAY RESISTANT
COST-EFFECTIVE SYSTEM
ECO-FRIENDLY
VISTACLAD SYSTEM COMPONENTS
The VistaClad system combines Eva-Last composite technologies with an innovative installation process to provide a robust and convenient cladding solution. The resultant hidden fixing generates an unblemished finish and avoids the limitations or inconvenience of fastening through composite.

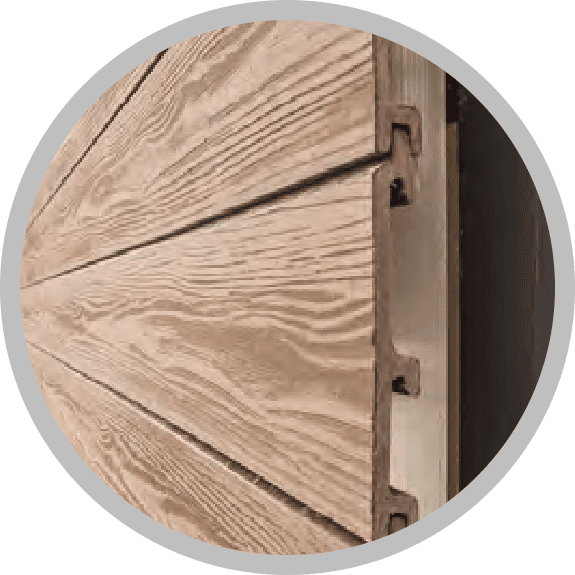

INFINITY BAMBOO COMPOSITE CLADDING

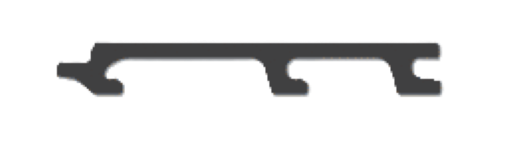

VistaClad cladding boards are available in Infinity bamboo composite material technologies, designed for long-lasting weather resistance, including protection against insects, moisture, and fading. The tongue and groove profile design interlocks the boards, supplying system tolerance whilst improving load distribution and reduction of moisture ingress.

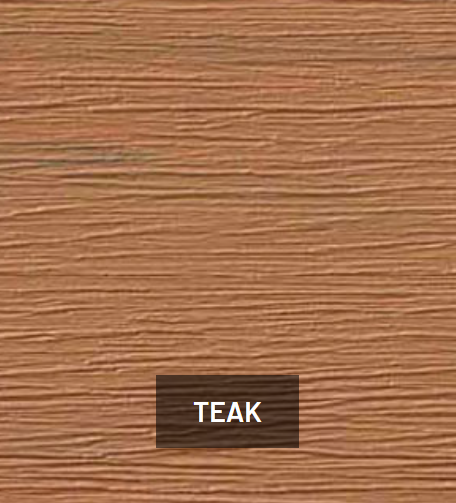

COLOUR RANGE – BRUSHED SOFTWOOD FINISH
Reliable durability with a 25-year warranty
The Infinity colour range offers specialised streaked colour technology to ensure that no two cladding boards are identical and to give your exterior walls the look of natural timber cladding. The brushed finish applied to the VistaClad Infinity cladding boards further enhances the natural tones, allowing you to enjoy the look of timber cladding in a more durable, hassle-free, and sustainable bamboo composite.

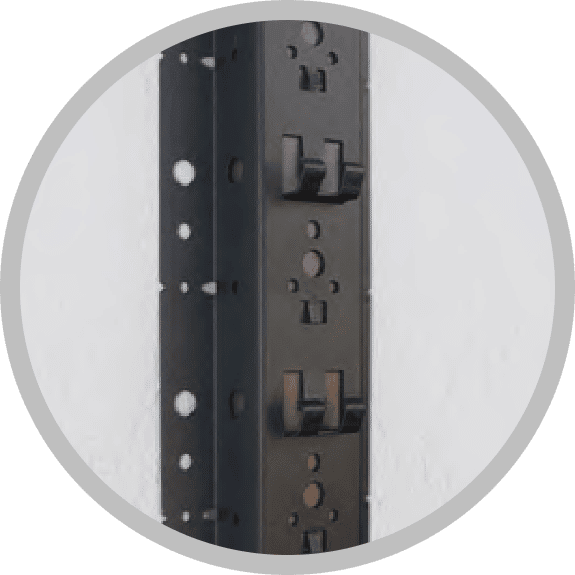

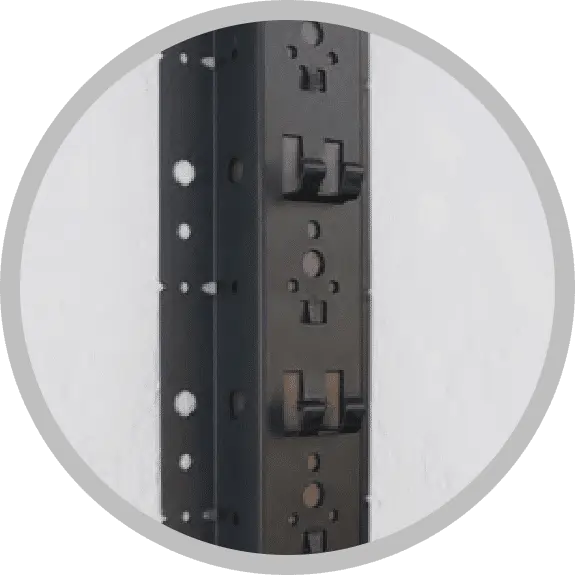

Clip Strip Section
The clip strip is used in VistaClad cladding design to allow the cladding boards to be easily and securely clicked into place. Three epoxy-coated, zinc-galvanised strip profile options provide flexibility in application and allow for optimal ventilation and drainage.

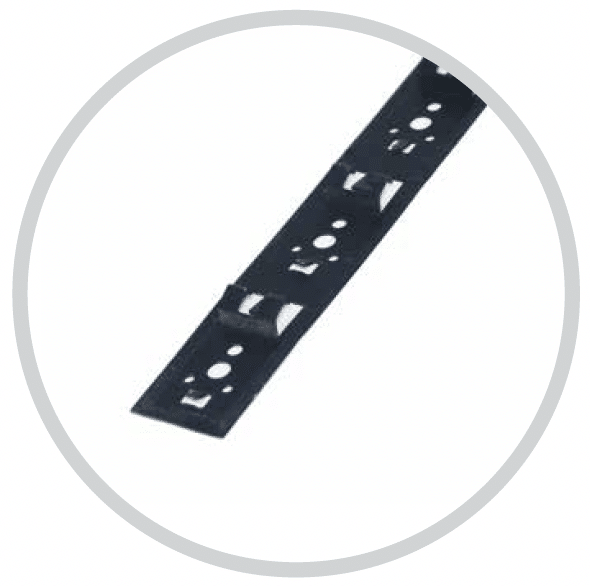

Flat Clip Strip
The clip strip is used in VistaClad cladding design to allow the cladding boards to be easily and securely clicked into place. Three epoxy-coated, zinc-galvanised strip profile options provide flexibility in application and allow for optimal ventilation and drainage.

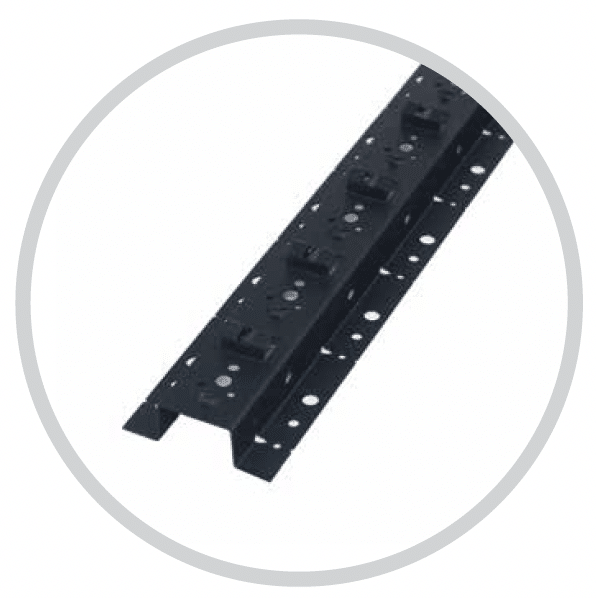

Top Hat Clip Strip
The top hat clip strip fits over 38 mm (timber) and 40 mm (composite and steel) supports or directly to the wall substrate. As a result, the ventilation/drainage cavity will be influenced by the thickness of the support as well as the fixing method but the minimum depth the top hat profile allows for is 25.4 mm. Fixing can be done through the face, the side, and either side of the clip strip base. Fixing through the side allows for the top hat to be plumbed quickly and easily.

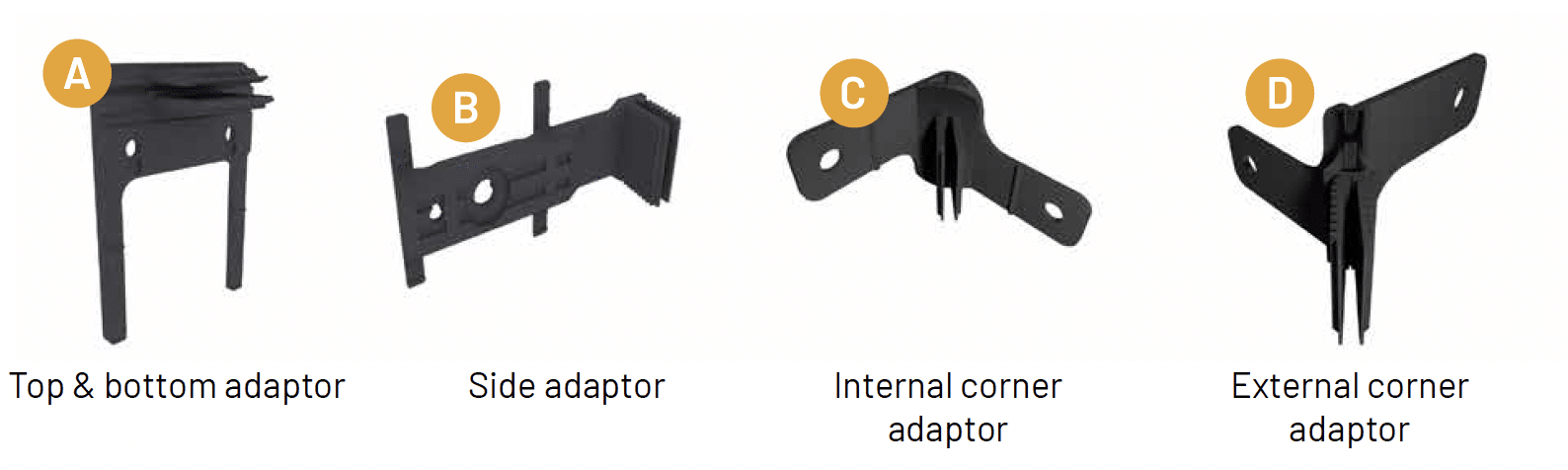

NYLON ADAPTORS

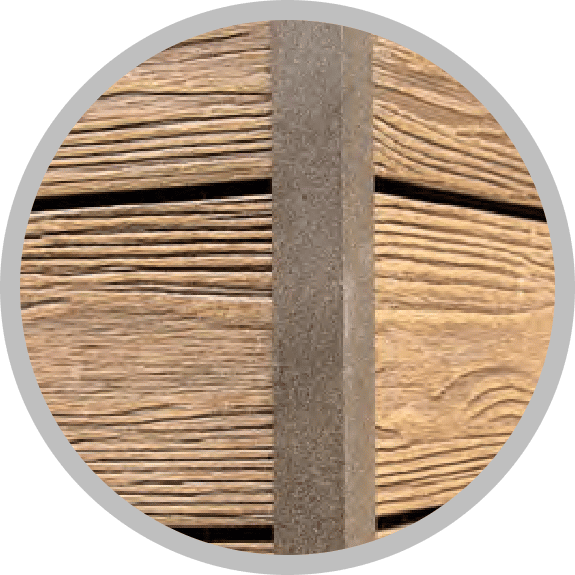

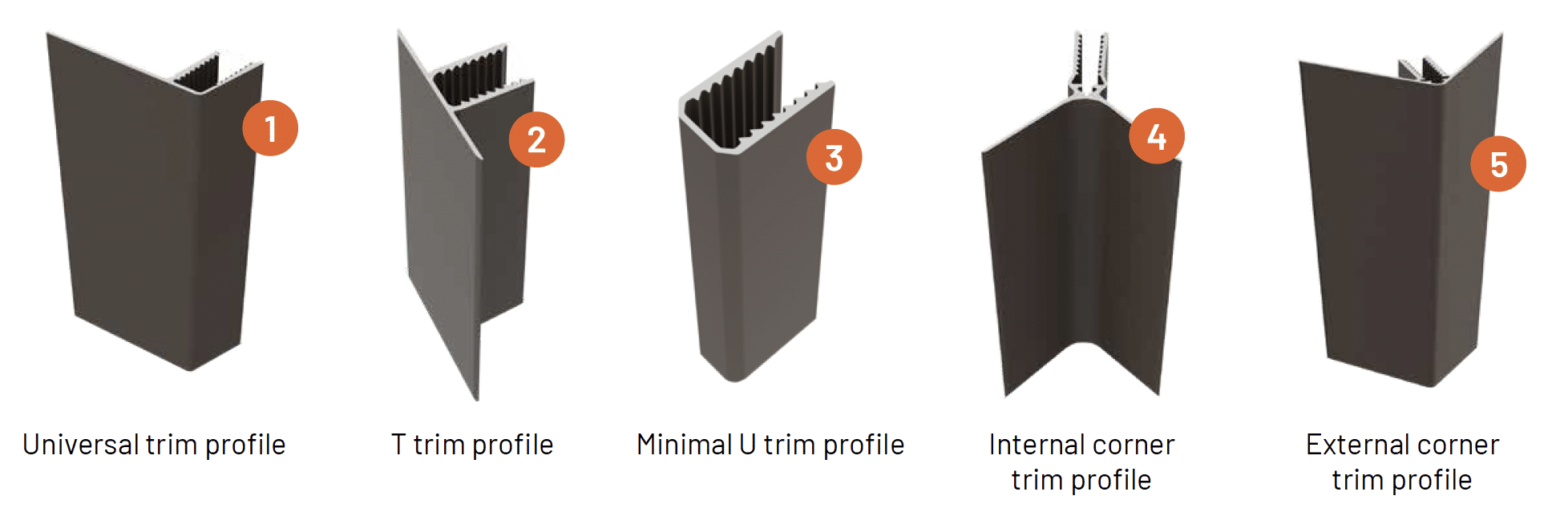

ALUMINIUM TRIM PROFILES

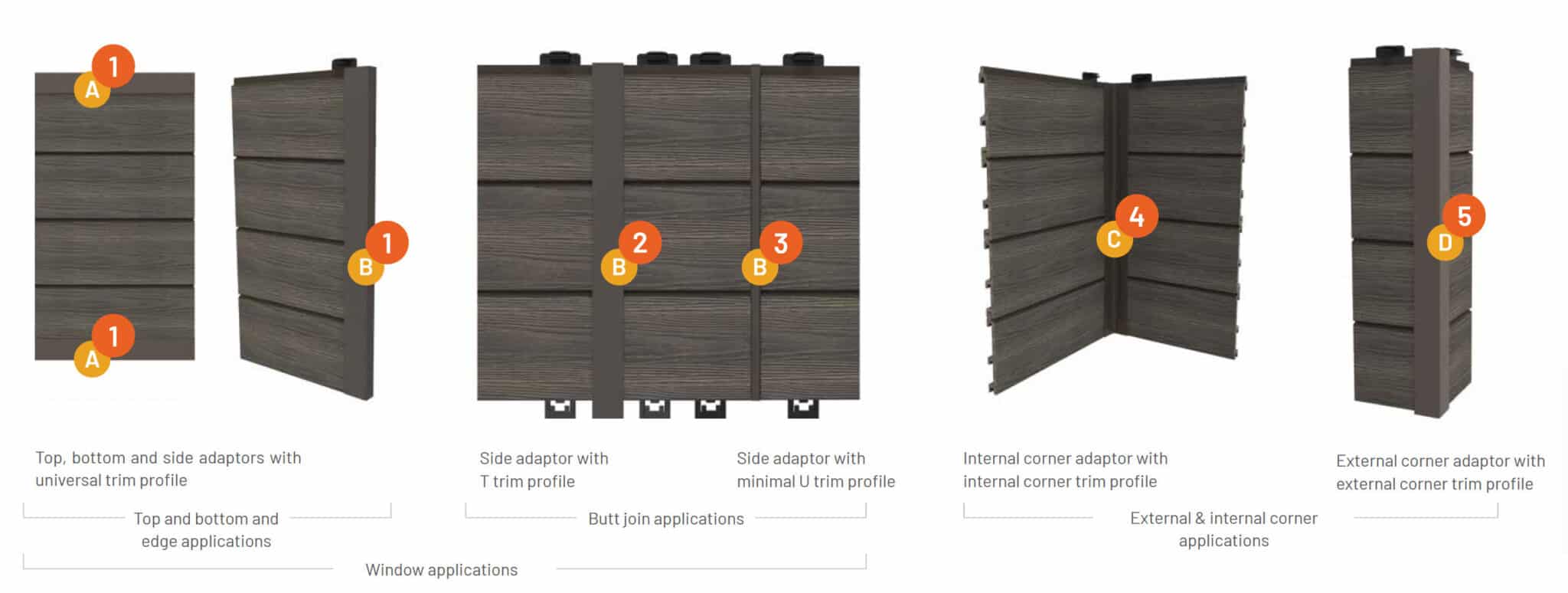

TRIM APPLICATIONS
Trim accessories hide the structure for a neat final look and can be installed using sealing strips to improve the weather resistance of the cladding surface. The clip strip allows for easy guided placement of the adaptors and the universal trims may be used with VistaClad or any cladding boards with a thickness of 20.5 mm to 26.5 mm.
